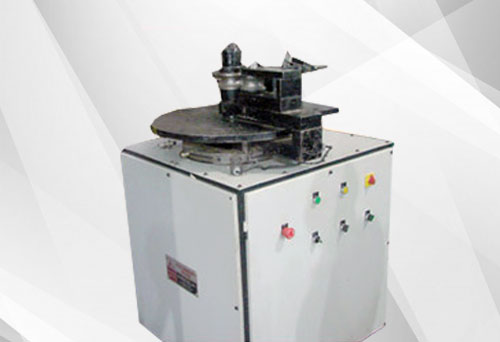

| Specification |
| Model No. |
SHM 20 |
SHM 50 |
| Tube OD x thickness |
26 x 3 mm Stainless Steel |
50 x 3 mm Stainless Steel |
| 316 Ferrous matt, UTS 45 kg/mm2 Bend Centre Line Radius |
28mm to 550 mm |
28mm to 550 mm |
| Higher radius |
on request |
on request |
| Bend Centre line radius to OD of Tube Ratio |
2 D/1.5 |
2 D/1.5 |
| Bend angle |
0 to 1800 (degrees) |
0 to 1800 (degrees) |
| Bending Speed |
4 rpm |
4 rpm |
| Bending direction |
clockwise & Anticlockwise |
clockwise & Anticlockwise |
| Bending accuracy |
+ 0.250 |
+ 0.250 |
| Tube indexing |
Manual |
Manual |
| Tube Positioning |
With sutable fixturing |
With sutable fixturing |
| Length setting |
with mechanical stopper |
with mechanical stopper |
| Tube holdding Controls |
Manual or vice
Semi automatic with Dog setting for angle |
Manual or vice
Semi automatic with Dog setting for angle |
| production rate (approx) |
1600 bends/shift |
1600 bends/shift |
| Weight |
500 Kg. Approx |
500 Kg. Approx |
| Size |
700 W x 600 D 1000 H |
700 W x 600 D 1000 H |
| Power |
2 H.p. |
2 H.p. |
